Youll have some wire pairs left over but thats fine youll have control of your motor. I hooked the charger port straight to battery and the battery is charged.
24v 36v Yiyun Yk31c Controller For Brush Motor Review And Manual Usefulldata Com
Ebike controller wiring finding e abs youtube for e bike controller wiring diagram image size 480 x 360 px and to view image details please click the image.
Yk31c circuit diagram. I thought that with throttle battery and motor plugged in it would runwrong. You are looking for yiyun yk31c wiring diagram youve come to the right place. The original 13amp YIYUN YK1912K controller burned up.
I dont have a key so to start with I just connected the. Under Voltage Battery Protection. Interconnecting wire routes may be shown approximately where particular receptacles or fixtures must be upon a common.
E-bike Controller Schematic Best Of. - the 4th throttle wire gets its own connector and is lined up with the redpositive terminal on the indicator connector. The wiring diagrams that I have for the Razor Ground Force show that it uses a reset switch circuit breaker instead of a fuse.
I want to control speed with throttle on a toy ATV that I changed the motor on. I have a 24v 350w yk31c controller I cant seem to get right on my e rivet mini bike. Review Pros and Cons.

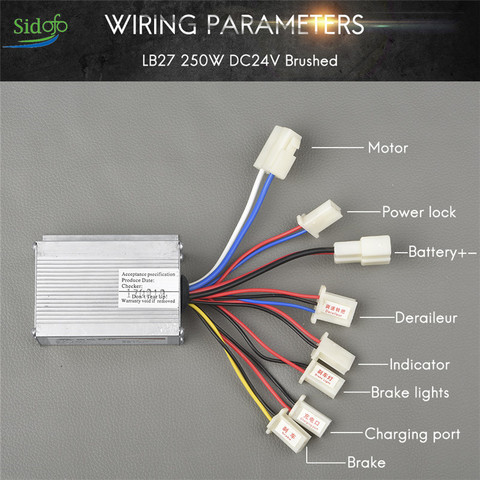

Good day i introduce controller for brush motor Yiyun LB27 I describe connectors plughere is more info and review. Such as png jpg animated gifs pic art logo black and white transparent etc. Yiyun yk31c brush motor 350w ebike controller e scooter accessories.
24v36v48v 250w350w Bldc Motor Speed Controller 6 Mosfet Dual Mode Electric Bike Mtb Tricycle Scooter Moped Conversion Part. Kunray yiyun yk31c w dc brush motor controller 24v 36v 48v ebike electric scooter wiring diagram bestharleylinksfo fancy scooter gas scooters and electric scooters retail and wholesale 47 elegant 48 volt electric scooter wiring diagram e scooter wiring diagram 24v w dc motor brushed speed controller electric scooter throttle brushless. Here is a wiring diagram for the Ground Force which shows how it is wired.

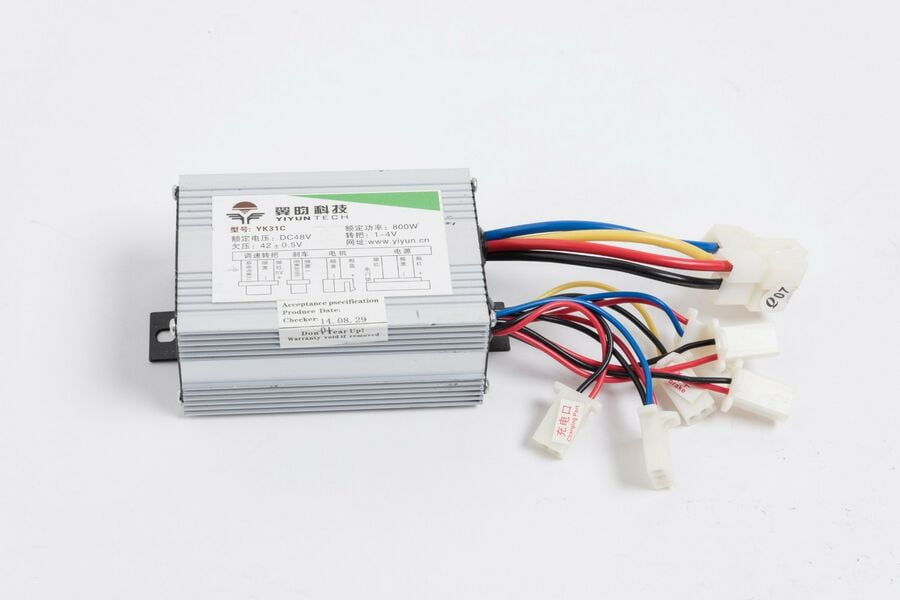

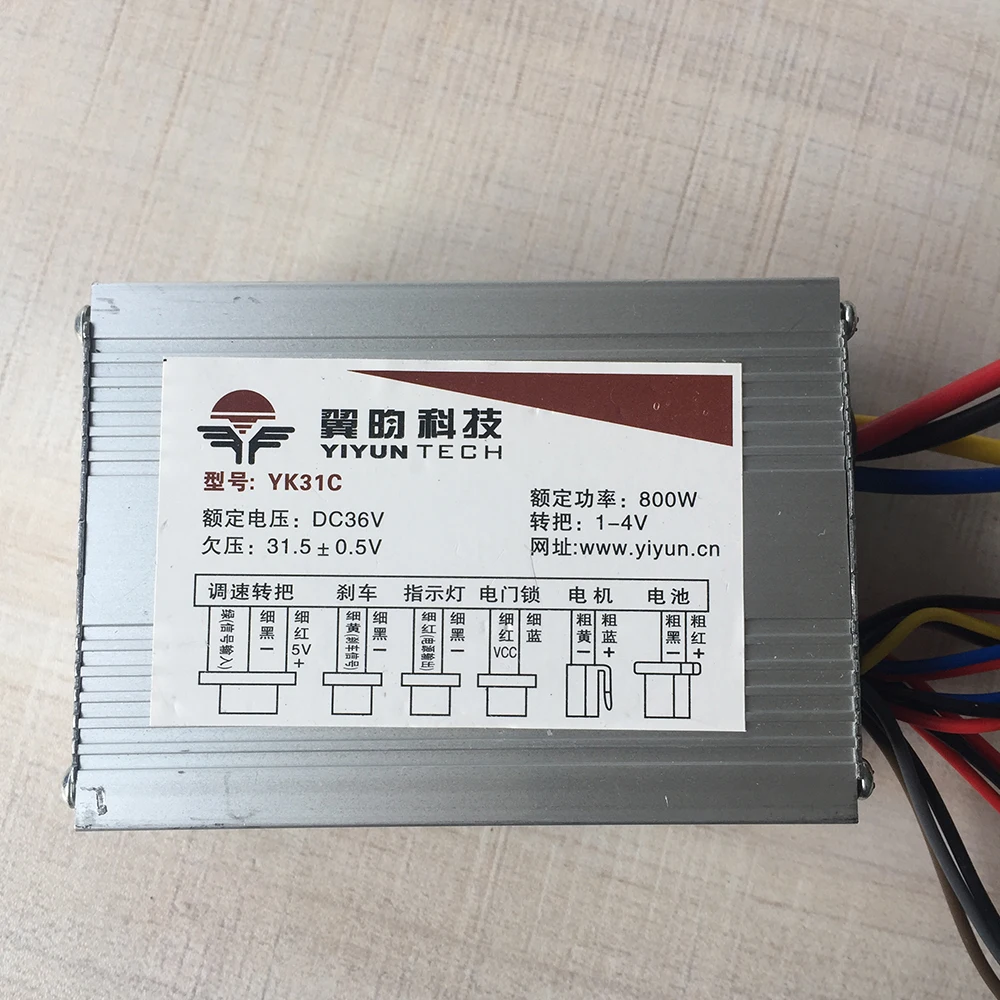

YIYUN YK31C SPEED CONTROLLER 24V 36V and 48V WIRRING DIAGRAM SPEED CONTROLLER ITEM YIYUN YK31C BATTERY MOTOR BRAKE LEVER Battery Indicator LIGHT THROTTLE CHARGING PORT LOCK POWER SWITCH ON BACK BATTERY 12 Volt CHARGER PORT MOTOR BRAKE LEVERS THROTTLE YK31C Diagram Brake Brake Cha Port Sp In Gover MO or t tery ion. If you want to find the other picture. The cutoff value is 20 Volts 05 Volts Motor Cut-Off During Braking.
When the battery pack falls below a specific Voltage the controller turns the motor off preventing over discharging of the battery pack which extends the battery packs lifespan. The diagram contains all you need to get up and running. The OnOff was the tricky one.
When the brakes are engaged the brake switch signals the controller to turn off the motor. E-bike Controller Schematic. When the brakes are engaged the brake switch signals the controller to turn off the motor.
When the battery pack falls below a specific Voltage the controller turns the motor off preventing over discharging of the battery pack which extends the battery packs lifespan. I then bought a YIYUN YK31C then the motor smoked MY1016. Under Voltage Battery Protection.
Zoom Bicycle Engine Wiring Diagram. Youll likely find lots of different sample diagrams here. September 20 2018 1.
24v w dc motor brushed speed controller electric scooter throttle electric scooter wiring diagram bestharleylinksfo attractive 24 volt electric scooter wiring diagram ponent amazon tdpro 48v w brush speed motor controller for This image Electric Scooter Controller Wiring Diagram Unique Pictures Kunray Yiyun Yk31c w Dc Brush Motor. Wiring diagram yk31c manufacturers and wiring diagram yk31c suppliers Directory - Find wiring diagram yk31c Manufacturers Exporters. As long as it has a reset switch then it does not need a fuse.
Electric bike from scrap simple e bike 1000w homemade duration. I was wondering if anybody can help in using this controller DC10-55V 60A PWM or another design to run a DC motor my1020D 24 volt 500 watts. We have 9 diagram about yiyun yk31c wiring diagram including images pictures photos and more.
- match up three of the throttle wires to the throttle connector then test for functionality. I marked it up with the switches terminal colors to show what they are. Voilamart E Bike Conversion Kit 26 Front Wheel 36v 500w Electric Bicycle Conversion Motor.
Can I bypass or not hook up on off toggle switch. Lcd led touchscreen display for electric scooters displays arduino forum scooter controller wiring help hobby electronics linus tech tips مزاد علني وسيط زواج شهريا circuit diagram homangrown org hub motor controllers project guidance technical guide 36v 48v 1000w brush sd chipmodule com razor manuals how to schematics endless sphere my hcf pacelite 705 needs. A wiring diagram is a streamlined standard photographic depiction of an electric circuit.
Maybe it also happened that the control unit YK31C on an electric bicycle or a four-wheeler or electric scooterIn this article I will describe a relatively good substitution for the old control unit you will learn the pros and cons there is also a good manual to connect the circuits to the control unit. Architectural wiring diagrams measure the approximate locations and interconnections of receptacles lighting and surviving electrical facilities in a building. The cutoff value is 20 Volts 05 Volts Motor Cut-Off During Braking.
The wiring wasnt hooked up when I got it so Im at a loss already plus a newbie to this. Heres another variation with the same controller using a 4-wire 36v twist throttle with built in battery meter. Kt Controller 36v 48v 250w 350w 500w 750w Electric Bicycle Controller.
